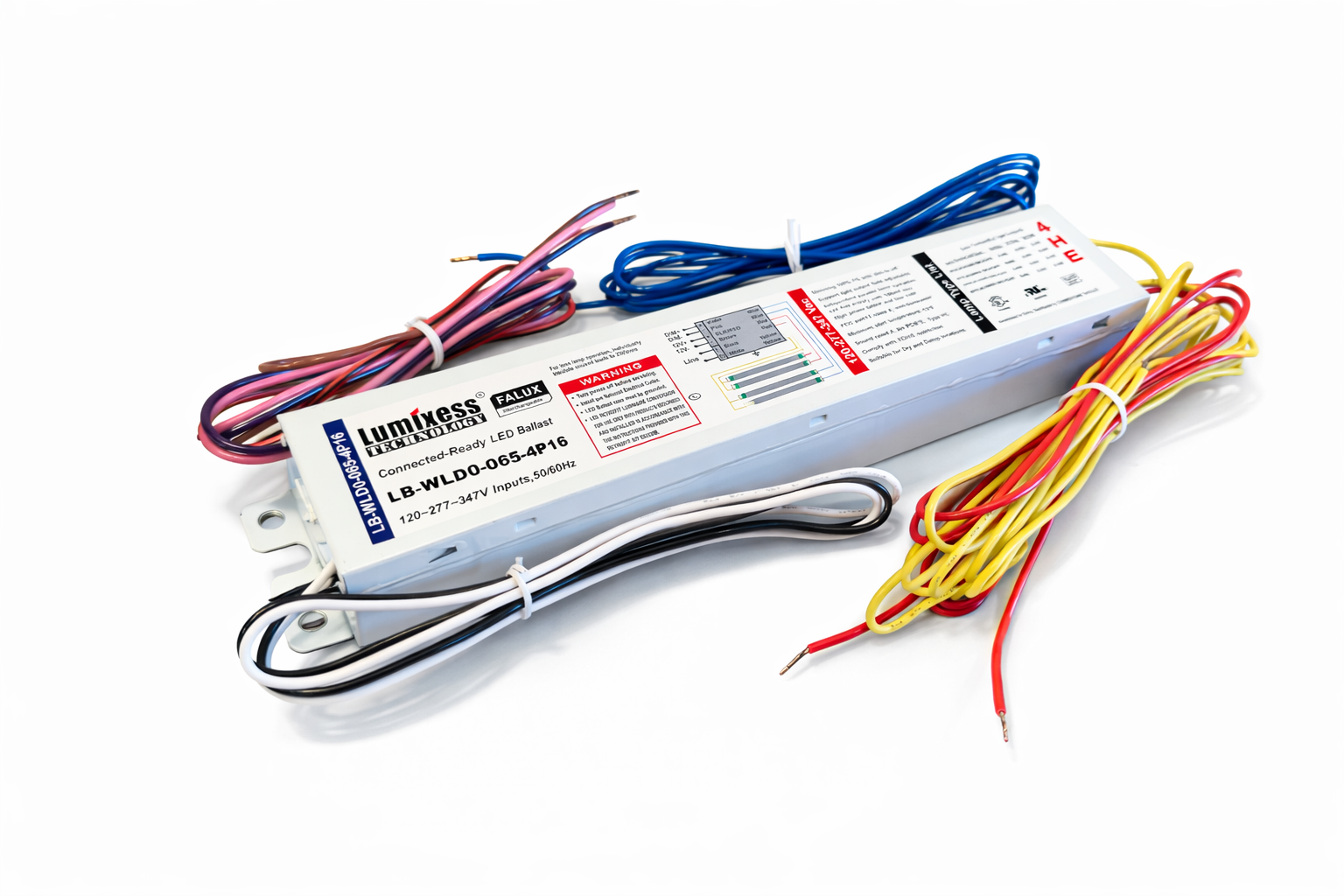

4-Lamp T8 Dimmable Ballast – 4P16

Model: LB-WLD0-065-4P16

This LED Ballast is designed for existing 4-lamp T8 fixtures commonly found in commercial and institutional buildings.

It provides a practical upgrade path for Type A LED tube retrofit systems by preserving existing fixtures, installed LED tubes, and electrical infrastructure.

As part of ConNexTube's standardized ballast platform, it helps transform existing retrofit projects into smart-ready lighting infrastructure without fixture replacement or tombstone rewiring.

Compatible with 0–10V dimming systems, the LB-WLD0-065-4P16 enables additional energy savings, dimming capability, and future lighting control integration while preserving the value of the original retrofit investment.

Key Features

• Designed for existing T8 lighting fixtures
• Compatible with existing Type A LED tubes
• Input voltage: 120～347V
• 0–10V dimming capable
• High PF>0.9 and Low THD<15%
• No tombstone rewiring required
• Preserves existing fixture infrastructure
• cULus Certified and FCC Compliant
• Local GTA inventory and delivery available

Typical Applications

• Office buildings
• Schools and universities
• Hospitals and healthcare facilities
• Parking garages
• Commercial lighting maintenance projects
